SynapseFlow: The Intelligent Academic Operating System

SynapseFlow is a high-fidelity, intelligent academic platform designed to bridge the gap between note-taking, active recall, and collaborative study. By integrating Retrieval-Augmented Generation (RAG), CRDT-based collaborative whiteboards, and AI-powered scheduling, SynapseFlow provides a unified, real-time workspace for modern students.

Core Modules & Features

1. Secure Authentication & Identity

• Real-time Validation: Every input is audited in real-time during registration; users receive immediate hints/feedback (e.g., password complexity, email formatting) via reactive UI states.
• Cryptographic Security: Passwords are hashed using bcrypt before database persistence.
• Session Management:
  • Uses JWT for persistent session tracking.
  • Implements Refresh Token Rotation (short-lived tokens) to ensure security; tokens are automatically discarded and rotated without requiring user re-login.
• Account Recovery: Secure password reset flow via email; sends a unique token to the user’s provided email address for verified credential updates.

2. Knowledge Workspace (Notes & RAG)

• Multi-Format Ingestion: Supports high-fidelity uploads of PDF and DOCX materials.
• Advanced RAG Pipeline:
  • Extraction: Text is extracted from PDFs via pdf-parse.
  • Chunking: Chunks are generated using RecursiveCharacterTextSplitter from LangChain to preserve semantic context.
  • Vectorization: Chunks are transformed into 3072-dimension vectors via the gemini-embedding-001 model.
  • Retrieval: Uses PGVector and the Cosine Distance formula to fetch the K nearest neighbors for grounding AI responses.
• Rich Previews:
  • PDFs: Rendered page-by-page using react-pdf.
  • DOCX: Converted client-side to semantic HTML via mammoth.
• File Management: Full CRUD operations with the ability to preview and download documents locally.

3. Active Recall System (Flashcards & Tests)

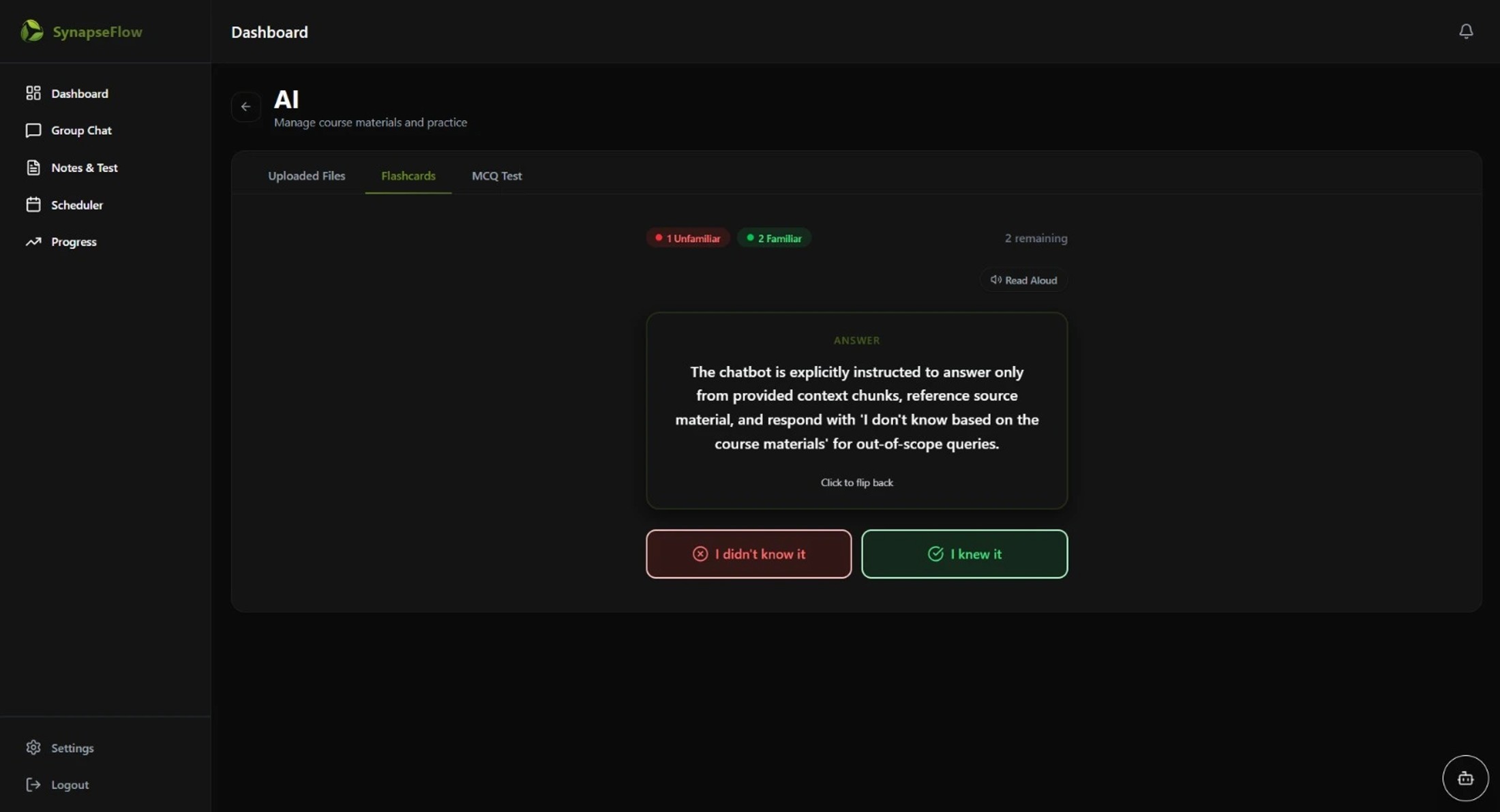

• AI-Generated Flashcards: Automatically generates flashcards from uploaded notes using the Gemini API.
  • Study Interface: Animated flip-card UI powered by Framer Motion.
  • Text-to-Speech: Integrated support via the Web Speech API.
  • Rating System: Users can rate cards as "Familiar" or "Unfamiliar" to track mastery.
• MCQ Test Engine:
  • Sequential quiz interface with real-time answer validation.
  • AI-generated explanations provided after every question to clarify concepts.
  • Final score summaries include score percentages and a per-question breakdown (user answer vs. correct answer).

4. Real-Time Collaboration (Chat & Whiteboard)

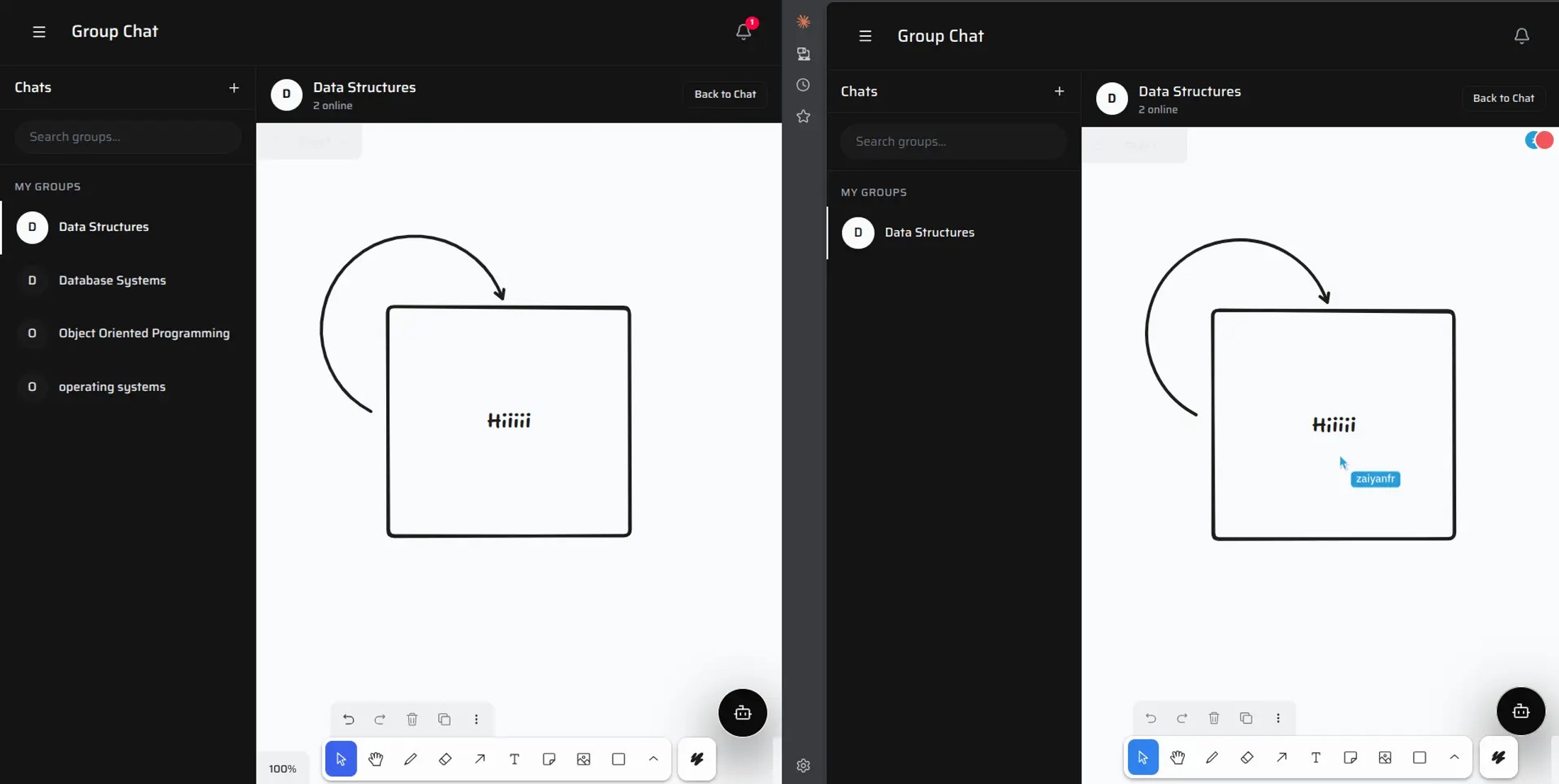

• Collaborative Whiteboard:
  • Built on tldraw v5 with @tldraw/sync-core.
  • Binary Sync: Uses raw WebSockets (ws library) for optimized binary frame transmission.
  • CRDT Consistency: Ensures eventual consistency across all distributed peers using Conflict-free Replicated Data Types.
  • Persistence: Board snapshots are snapshot-persisted to Postgres on every change.
• Group Chat:

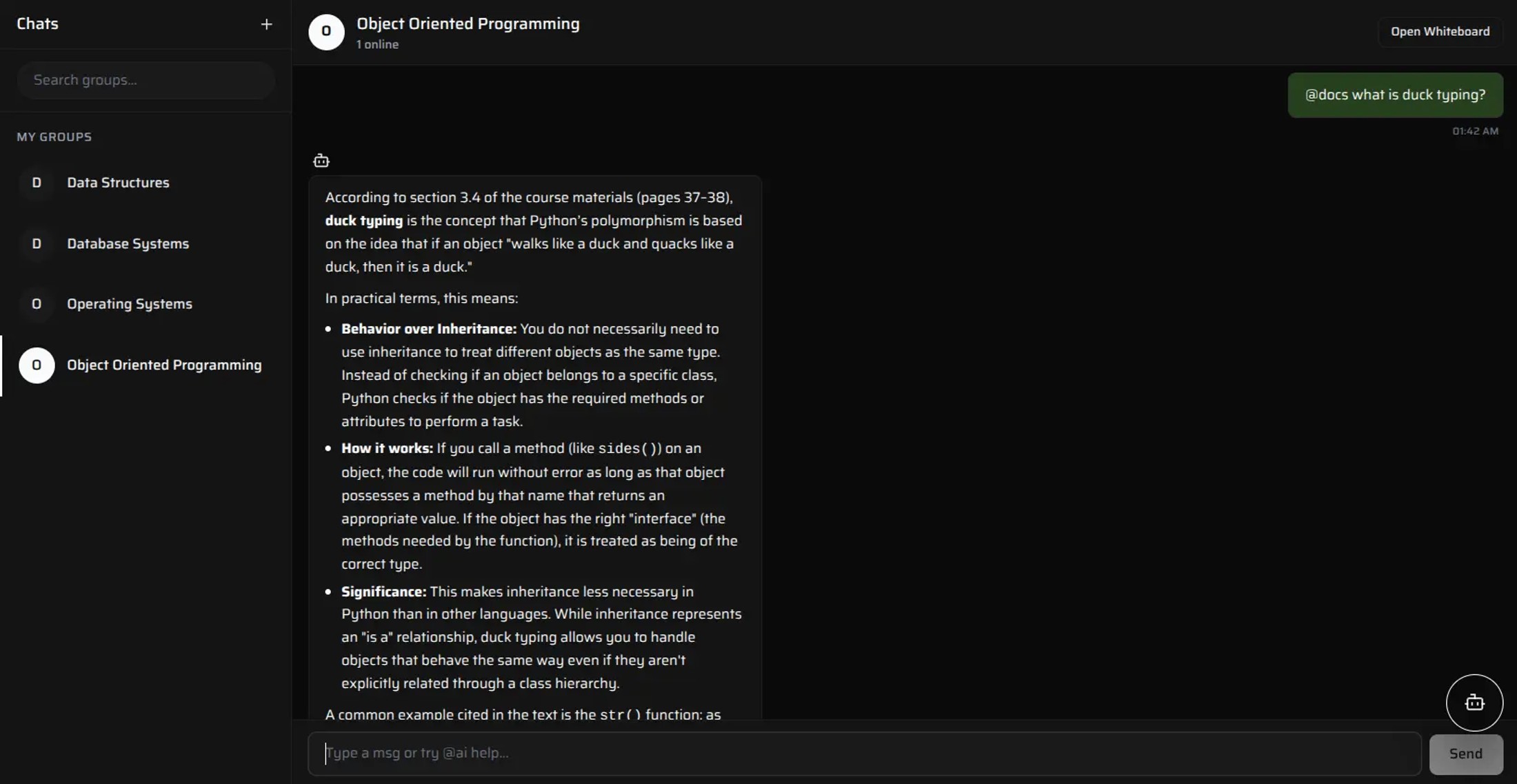

  • Command Suite: Invoke AI via @ai (summarize messages, ask general questions) or @docs (interrogate uploaded documents).
  • Membership Events: Real-time broadcast when someone joins/leaves a group.
  • Message Governance: Users can delete their own messages (for everyone or self); Group Admins can delete any message or the entire group.
  • Presence: Real-time member count updates via WebSocket heartbeats.

5. AI Study Planner & Scheduler

• Academic Events: CRUD operations for Assignments, Quizzes, Projects, and Sessions with priority levels (Low/Medium/High).

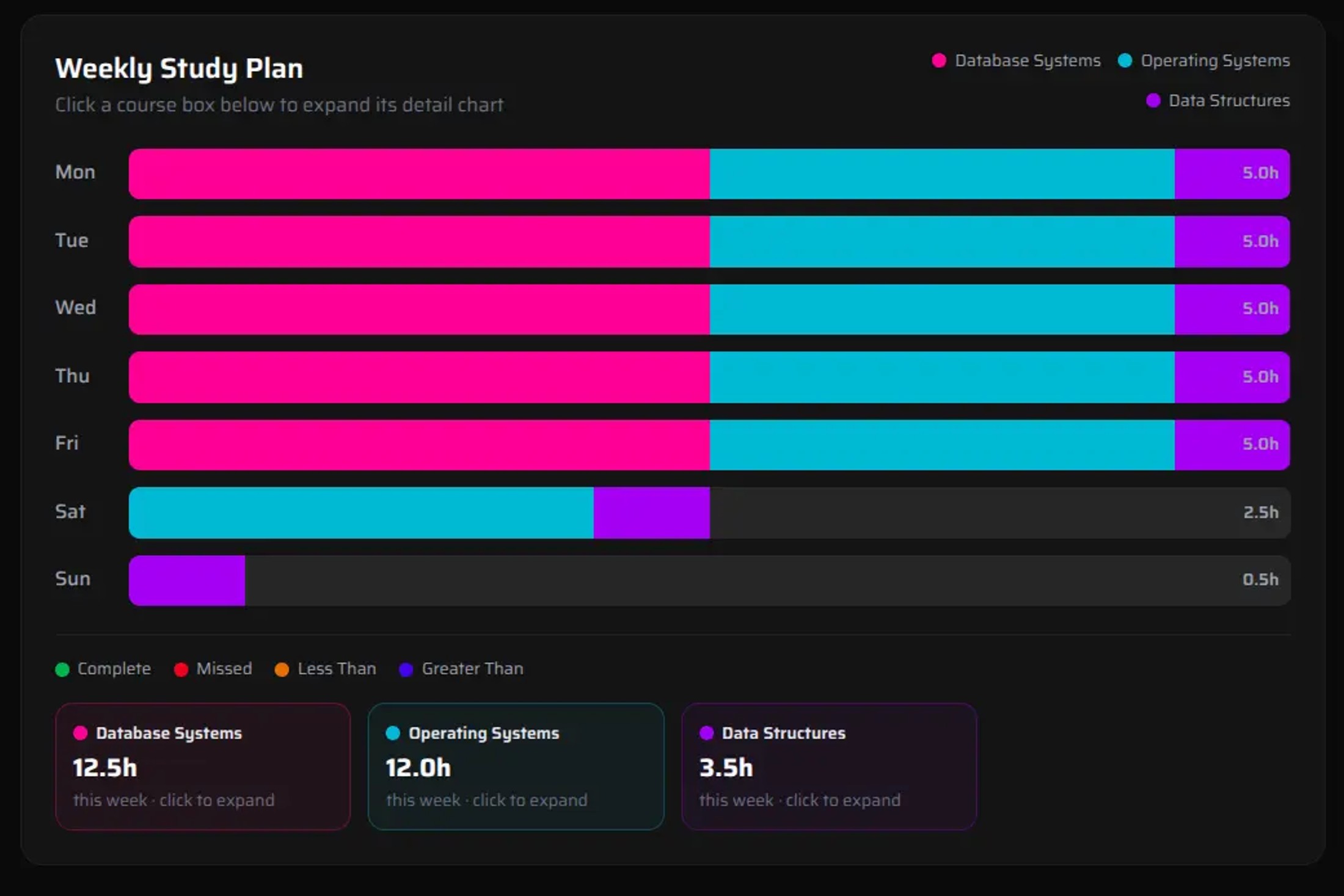

• AI-Generated Study Plan:
  • Generates a structured weekly plan via Gemini based on courses, prep levels, and occupied time slots.
  • Results are parsed and merged into the plan schema; fully editable post-generation.
• Progress Tracking: Sessions are logged as complete | missed | deviation to compute completion rates and streaks.
• Notifications: Cron-based generation of reminders combined with frontend polling (30s interval) to keep alerts live.
• Google Calendar Sync: Full OAuth 2.0 flow to import existing events and sync local academic deadlines.

🛠 Technical Architecture

LLM Orchestration & Guardrails

• API: Google Gemini API.
• History Awareness: AI reponds to user queries using full message history for contextual continuity.
• Strict Guardrailing: Prompt engineering strictly enforces an "Educational Only" policy; the assistant will refuse to answer non-academic or irrelevant queries.
• Streaming UI: Responses are streamed to the client for a responsive, natural feel.


Performance & Networking

• Rate Limiting: Custom Token Bucket strategy (Capacity: 3, Refill: 1/10s). Background jobs prune idle sessions to maintain memory efficiency.
• Dual-Transport Interception: The backend intercepts raw WebSocket upgrades on specific paths while allowing Socket.io traffic to pass through on others.
• Optimistic UI: Uses TanStack Query for instant cache invalidation and UI feedback during CRUD operations.

🛠 Tech Stack

Frontend: React, Vite, TailwindCSS, TanStack Query, Framer Motion, tldraw, react-pdf, mammoth

Backend: Node.js, Express, Socket.io, ws, Drizzle ORM, node-cron

Database: PostgreSQL, PGVector

AI: Gemini 1.5 Flash, Gemini Embeddings, LangChain

Integrations: Google Calendar API (OAuth 2.0), Web Speech API
